What is "Standard Flow Speed"?
Standard Speed of Suction & Discharge Valve for System, Compressor, Pump & etc
![Standard Speed of Suction & Discharge Valve for System, Compressor, Pump & etc](img/03/img01.gif)
Standard speed for gas in Suction, Discharge entry
![Standard speed for gas in Suction, Discharge entry](img/03/img02.gif)

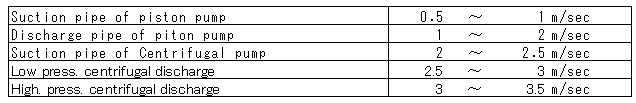

Standard speed for liquid in Suction, Discharge entry
![Standard speed for liquid in Suction, Discharge entry](img/03/img03.gif)

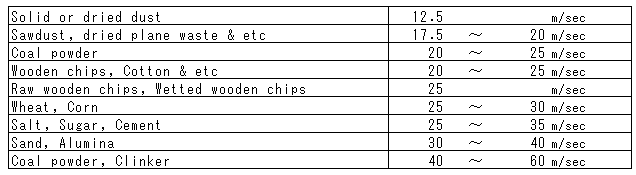

Standard speed for pneumatic conveying (Fluid: Solid)
![Standard speed for pneumatic conveying (Fluid: Solid)](img/03/img04.gif)
Standard speed for water power conveying (Fluid: Solid)
![Standard speed for water power conveying (Fluid: Solid)](img/03/img05.gif)
Standard speed for pneumatic conveying
![Standard speed for pneumatic conveying](img/03/img06.gif)
Standard speed for water power conveying
![Standard speed for water power conveying](img/03/img07.gif)
