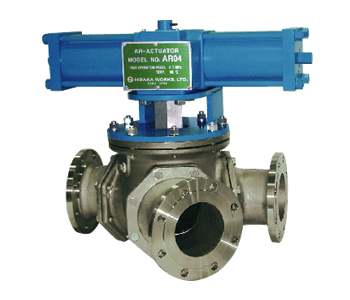

AR Model : Double Acting Actuator (135 deg. Rotation, Rack Pinion type)
Features
Fluid |
Air |
Maximum Operating Pressure |
0.69MPa (7kg/cm2G) |
Permissible Environment Temperature |
15°C~+80°C |
Lubrication Oil |
No need |
Guaranteed Operation Cycles |
100,000 cycles |
Rotation Angle |
135 degree |
![Catalog](img/pdf_btn-out-01.jpg)
- This actuator is designed for Y-type 3-way ball valve.
- Mechanism of cylinder is Rack Pinion type, and realized to get stable and smooth operation design.
- Simply and safety rate are taken into consideration for each parts.

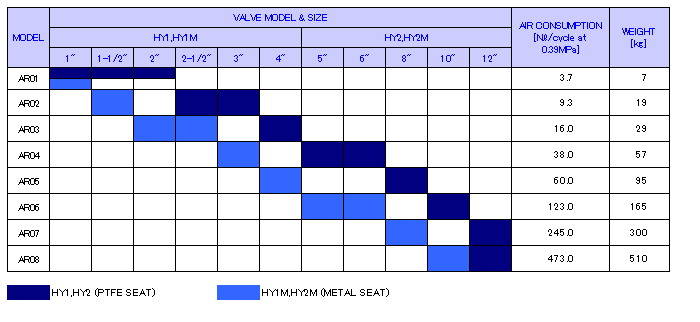

![AR Model : Double Acting Actuator - Data](img/detailData01.gif)

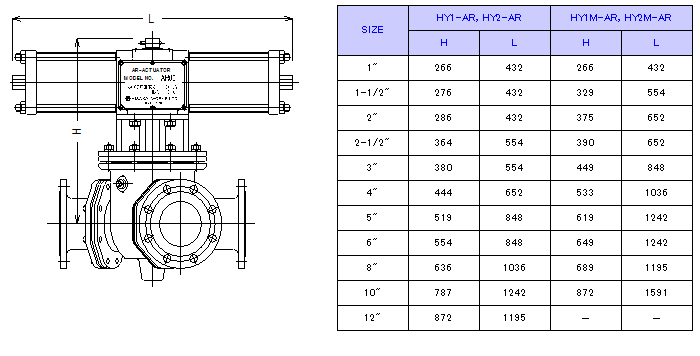

DIMENSION
![DIMENSION](img/detailData02.gif)
