TDT, TST actuator (2-stage control is suitable for measuring system line.)

TDT, TST actuator (2-stage control is suitable for measuring system line.)

Features

Fluid Air
Maximum Operating Pressure 0.69MPa
(7kg/cm2G)
Permissible Environment Temperature -20°C~+80°C
Lubrication Oil No need
Guaranteed Operation Cycles 100,000 cycles
Rotation Angle Half open
0~45 degree
Full open/close
0~90 degree

Catalog

  • The opening ratio (Max. 45 degree) of valve can be adjust at an arbitrary position.
  • The operation pressure of actuator supplied from solenoid valve directly not through positioner, therefore the response of open/close can be quickly.
  • And it is possible to do fine adjustment by repetitive operation close to half open.(TST model only).
  • Spring return cylinder (Model:TST) is possible to use for emergency shut down, at the time of electric power failure and stop the air supply.

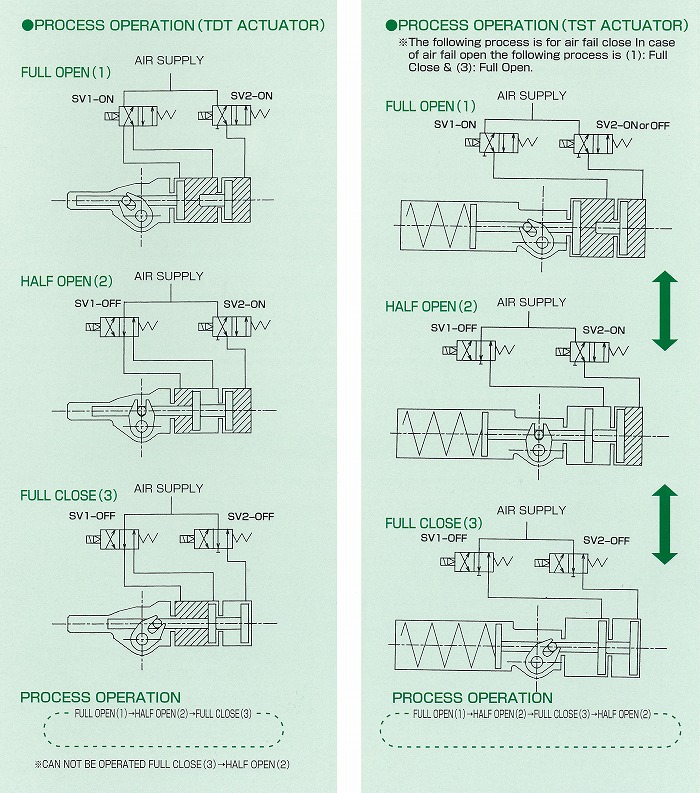

ACTION FLOW

ACTION FLOW
