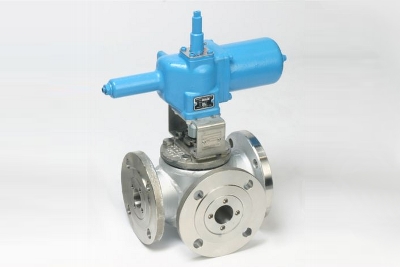

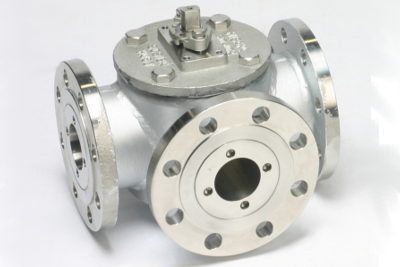

H45J JACKETED, 3-WAY, BALL VALVE (4SEATS TYPE)

Features

Full-jacket is applied to the 3-way ball valve for the purpose of switching and branching the flow path, and the fluid can be kept warm and/or cold. The gland part is compatible with T-port and L-Port, and the 4-sided sheet is adopted for the purpose of a reliable sealing property.

●Various kinds of branching is possible with one valve, and it can prevent mis-operation.
●Reducing the piping cost and space.
●There is no fluid remaining between the valves in case of using 2-way valves.
●With 4-seat design, the flow direction is selectable.
●Gland parts can be tightened easily, as it is fixed with bolts.
●Anti-static device can be attached  (Option).
●The stopper can be fixed valve position correctly.
●Preventing a mis-operation caused by other operators with key lock (Option).
●Eliminating the pressure drop and holding fluid in the pipes with its full bore design.
●Full jacket design keeping the fluids warm and/or cold perfectly.

Specification

Production range
Connection rating  : JIS10K, ASME 150#
Size  :  15A(1/2”)~100A(4”)
Material  :  SCS13A, SCS14A

Usage

Petrochemical, food and other lines.
The jacket part, where the steam, heat medium, and refrigerant is passing through, is required thermal/cooling retaining effect and the three-way switching.

Option

Anti-static, gland O-ring seal, key-lock, special painting, oil & water free treatment, flushing nozzle, buffing, electro polishing, beveling port, and etc
