This model has been developed specially for steam service(1MPa). These are using at steam line for many kinds of fields(chemical, food, air conditioning and etc).

●Parts is compatible with HF5(ST), performance is same with  HF5(ST) model.

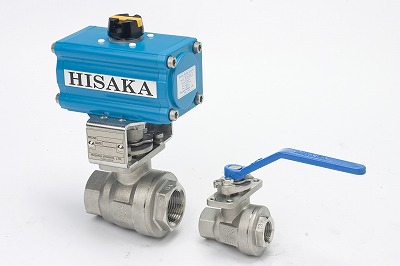

●This screwed ends full bore ball valve can be automatized  easily.

●Ball seat of 1MPa is adopted MAXTITE PTFE material, and 2MPa is adopted special carbon filled PTFE has higher heat resistance for down stream side.

*SCS14A material is not so big lot for manufactuirng, so please be careful of delivery time.

Connection Rating ： JIS 10K, ASME 150#
Size ：　8Ａ(1/4")～50Ａ(2")
Material ： SCS13A, SCS14A, FCD450 etc

Chemical, Food, Air conditioning, Steel, etc

Anti-static, Gland O-ring seal, Liquid seal, Key-Rock, Long Bonnet, Special Painting, Oil&Water Free, Buffing, Electro Polishing, Hard facing treatment at port and etc
