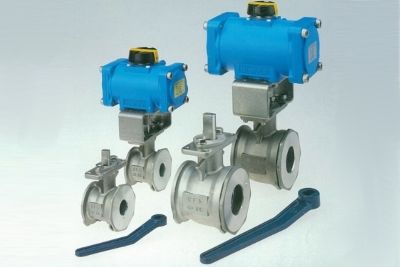

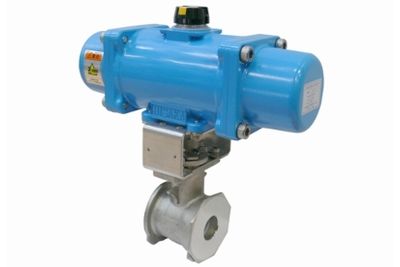

This flange less ball valve is able to attach on piping by putting between flanges, and realized "more light, more compact, more smart".

●Face to face dimension of flanges is below half or one third shorter than flange standard type ball valve, suitable for confined space.
●Weight is nearly same with screw type ball valve, loading weight to pipe is small and can be decreased piping support.
●It is not necessary to use union joint as screw type.
●As protection of falling, wing is located on gland part and guide is on valve's outer for easily center finding.
●Ball seat is same with standard ball valve.

Production Range
Connection rating: JIS10K
Size:                    10A(1/4”)～50A(2”)
Material:               SCS13A

For piping in small and confined space.

Anti-static, Gland O-ring seal, Key-Rock, Special Painting, Oil&Water Free, Buffing, Electro Polishing, Beveling port and etc.
