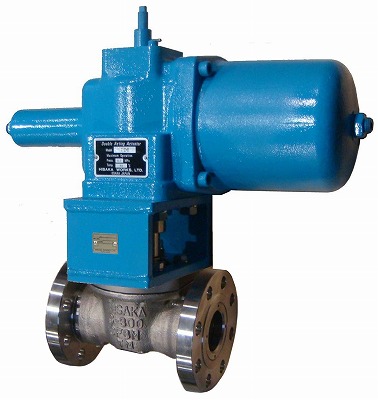

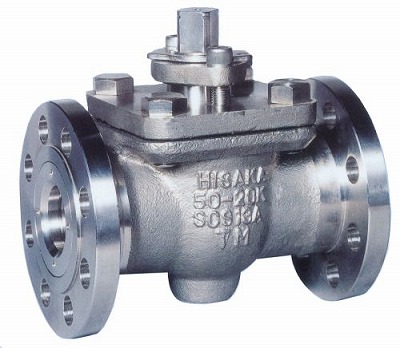

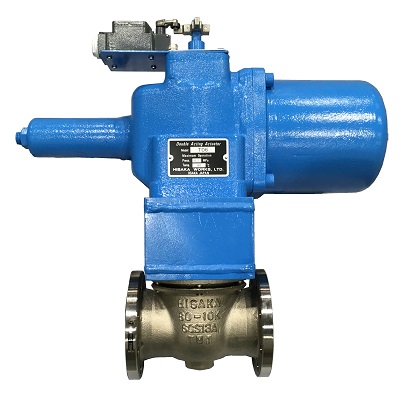

This model is suitable for both side(upstream & downstream) pressurized metal touch ball valve for high temp. service. This model is suitable for slurry, high viscosity fluid, high frequency operation line and others of critical application.

●Ball is treated hard facing, kind of hard facing is selected depends
 on operation condition.
●It has 3 types for temp. ranges. Maximum temp. is max 600℃.
●Standard seat leakage class is ANSI/FCI 70-2 ClassＶ.

Production Range
Connection rating　：　JIS 10K, ASME 150#
Size                     ：　15A(1/2")～300A(12")
Material              　：　SCS13A，SCS14A, SCS16A　others

Connection rating　：　JIS 20K, ASME 300#
Size                     ：　15A(1/2")～300A(12")
Material              　：　SCS13A，SCS14A, SCS16A　others

Model Name & Available Temp.
TMM　　200℃～350℃
TMH　　350℃～600℃(*)

(*)Non-oxidation atmosphere is suitable for max. 450℃.
           oxidation atmosphere is suitable for max. 600℃.

Hard Facing
Ball  :  ISONITE (Salt Bath Nitriding)
          NEW KANUC (Vacuum Evaporation Gas Nitriding)
          METECO-16C (Self-Fluxing Alloy Spraying Ni basis)
Seat :  Stellite No.6

Tolerable Seat Leakage
ASME/FCＩ 70-2　CLASS V
0.072　cc/min/size(inch)/diff.press（MPa）

This model is suitable for both side(upstream & downstream) pressurized metal touch ball valve for high temp. service. Steel industry, Petrochemical and other high temp.service.

Anti-static, Key-Rock, Special Painting, Oil&Water Free, Buffing, Electro Polishing, Beveling port, Ferrule ends etc
