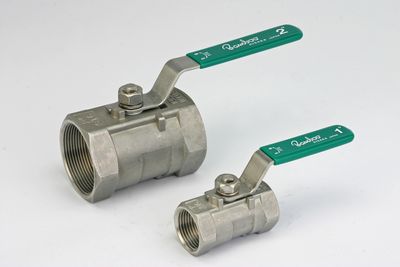

HBS（Bamboo） SCREW ENDS, 1-PIECE BALL VALVE (ECONOMICAL MODEL)
|
|
Features
Screw ends, 2-way, 1-piece body, economical model.
●Valve body is reduced bore and 1 piece design.
●With compact body and light weight, can be attached and operation
easily.
●Suitable for utility line(water, air , etc), simple design and low cost valve.
Specification
Production Range
Connection Rating ： RC(JIS B0203)
Size ： 8A(1/4”)～50A(2”)
Material ： SCS14A
Max. operation press. ： 6.9MPa (water, oil)
4.4MPa (Gas)
Max. operation Temp. ： 160℃
Usage
Utility Line(water, air and etc)
Option
Oil & Water Free treatment
