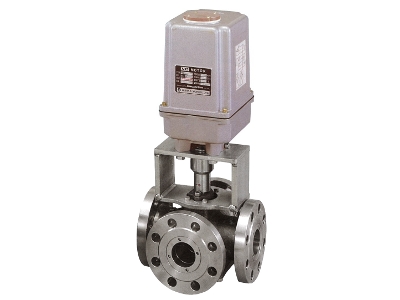

This valve is 4-way, 4-seats ball valve usable for high pressure condition.  With trunnion mounted design, can be gotten high duravility and stable seal performance under high pressure condition.

●Sealing is tight with uniformity specific pressure and torque is stable by spring at back of ball seat.
●It is suitable for protection of cavity expansion, temperature fluctuation, and pressure fluctuation.
●Valve body is combined unit for body & cap, so weight is light and face to face dimension is short. It means compact body.

Production Range

Connection Rating ：JIS10K, JIS20K, ASME150#, ASME300#
Size ： 15Ａ(1/2")～200Ａ(8")
Material ： SCS13A, SCS14A, etc

Diverting for high pressure condition (over 1MPa fluid)         Diverting for big differential pressure line                   Neccessary for high durability line

Petrochamical, steel, etc

Anti-static, Gland O-ring seal, Liquid seal, Key-Rock, Long bonnet, Special Painting, Oil&Water Free, Flushing Nozzle, Buffing, Electro Polishing, Beveling port and etc
